Mechanical Quality Guarantee

1. Cov khoom siv kho tshuab tau lav rau 5 xyoos, cov khoom siv hluav taws xob thiab cov khoom tsis zoo yog lav rau 1 xyoos.

2. Txhua qhov chaw ntawm lub rooj sib sau yog yooj yim rau kev saib xyuas.

3. Txhua qhov chaw nyob rau hauv lub rooj sib sau yog lubricated los ntawm roj da dej. Cov roj yuav tsum tau hloov txhua 4-6 lub hlis nrog cov roj tshwj xeeb.

Kev Ua Tau Zoo

1. Kev tsim tawm ntau txog 24,000 khob ib zaug (8 teev), mus txog 1.8 lab khob ib hlis (3 hloov).

2. Qhov feem pua ntawm kev hla yog siab dua 95% raws li kev tsim khoom ib txwm muaj.

3. Ib tus neeg teb xov tooj tuaj yeem tuav ntau lub tshuab tib lub sijhawm.

Mechanical Cwj Pwm

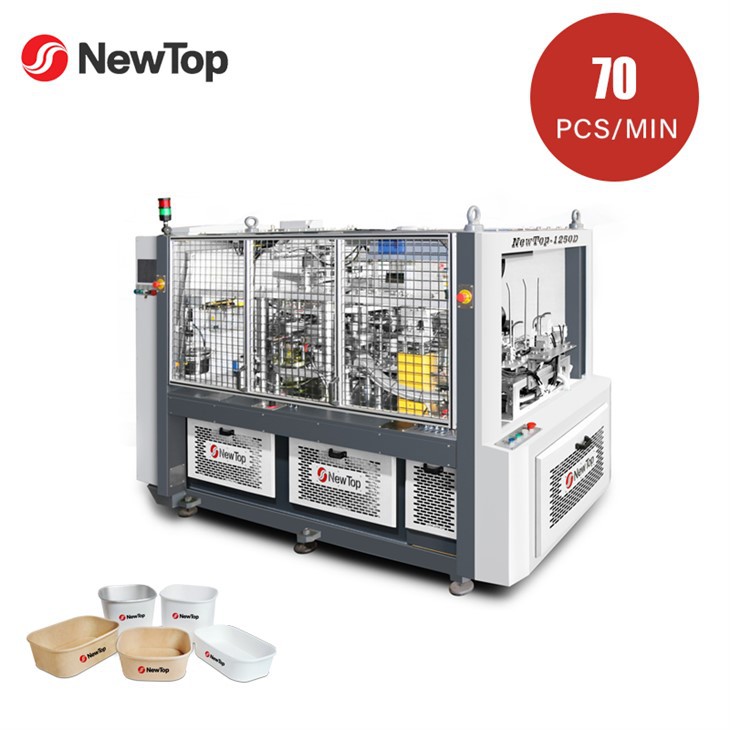

Lub DEBAO-1250D hom ntse ntawv khob tshuab yog siv desktop layout, uas cais cov kis tau tus mob thiab pwm. Cov khoom sib kis tau nyob hauv qab lub rooj, pwm nyob rau ntawm lub rooj, qhov kev teeb tsa no yooj yim rau kev tu thiab tu. Lub tshuab txais yuav tsis siv neeg tsuag lubrication, longitudinal axis kis qauv, chim hom cylindrical indexing mechanism thiab lub iav tsav, kom ntseeg tau tias stability thiab zoo ntawm tag nrho cov tshuab. Rau cov khoom siv hluav taws xob, PLC, photoelectric nrhiav thiab servo noj yog siv los tswj kev khiav. Hom tshuab no lub peev xwm yog 50-70 / min, haum rau kev tsim cov khoom tsis yog puag ncig hom txias / kub tais.

Lus Cim: Lub peev xwm tsim tau tiag tiag cuam tshuam los ntawm ntau yam thiab cov ntaub ntawv saum toj no tsuas yog siv rau kev siv.

DEBAO-1250D (Square)	DEBAO-1250D (Rectangle)
Qhov hnyav:	Qhov hnyav:
3 400kg	3 400kg
Tshuab encasement dimension:	Tshuab encasement dimension:
3000 x 1600 x 2100mm (cov lus sau 1230 x 720 x 1900mm)	3000 x 1600 x 2100mm (cov lus sau 1230 x 720 x 1900mm)
Txuas lub zog:	Txuas lub zog:
Peb-theem 380V, 29KW	Peb-theem 380V, 29KW
Compressed cua:	Compressed cua:
0.6-0.8MPa, 0.6m³ / min	0.6-0.8MPa, 0.6m³ / min
Muaj peev xwm ntau lawm:	Muaj peev xwm ntau lawm:
50-70 pcs / min	50-70 pcs / min
Hom ntawv:	Hom ntawv:
Ib leeg / ob npaug PE / PLA	Ib leeg / ob npaug PE / PLA
Ntawv thickness:	Ntawv thickness:
0.38-0.5 hli	0.38-0.5 hli
Cov khoom lag luam:	Cov khoom lag luam:
(D1) φ95-165mm (H) 50-110mm (D2) φ85-145mm (h) 7-10m	(D1) φ105-170mm (H) 50-110mm (D2) φ95-150mm (h) 7-10m

Visual Inspection System:	Visual Inspection System:
○	○
Cov cua sov hauv qab:	Cov cua sov hauv qab:
Sib dhos●	Sib dhos●
Long-term magazine:	Long-term magazine:
○	○
Tswj vaj huam sib luag:	Tswj vaj huam sib luag:
7 ntiv	7 ntiv
	Nco tseg: xaiv tau ○ tus qauv ●
