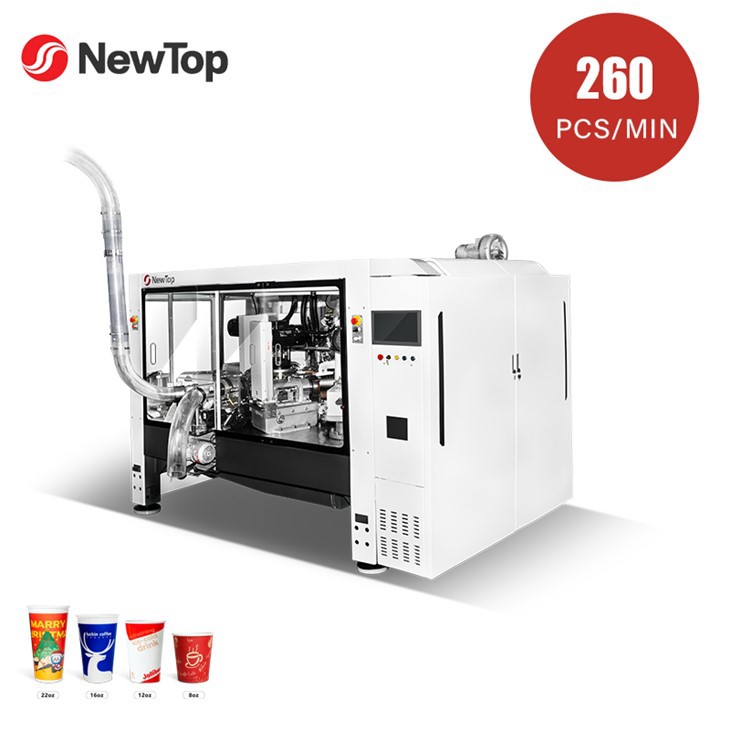

High Speed Intelligent Paper Cup Tshuab NEWTOP-258S
|
1. Cov khoom siv kho tshuab tau lav rau 5 xyoos, cov khoom siv hluav taws xob thiab cov khoom tsis zoo yog lav rau 1 xyoos. 2. Txhua qhov chaw ntawm lub rooj sib sau yog yooj yim rau kev saib xyuas. 3. Txhua qhov chaw nyob rau hauv lub rooj sib sau yog lubricated los ntawm roj da dej. Cov roj yuav tsum tau hloov txhua 4-6 lub hlis nrog cov roj tshwj xeeb. |
1. Kev tsim tawm ntau txog 96,000 khob ib zaug (8 teev), mus txog 7.7 lab khob ib hlis (3 hloov). 2. Qhov feem pua ntawm kev hla yog siab dua 99% raws li kev tsim khoom ib txwm muaj. 3. Ib tus neeg teb xov tooj tuaj yeem tuav ntau lub tshuab tib lub sijhawm. |
Mechanical Quality Guarantee
Kev Ua Tau Zoo
Mechanical Cwj Pwm
Lub tshuab no tau nruab nrog cov yam ntxwv ruaj khov, paub qhov txawv ntawm cov tshuab ntsug, thiab yog ib tus neeg sawv cev ntawm kev kub ceev ntawm New Debao!NEWTOP-258S kab rov tav hom kev kub ceev ntse ntse ntawv khob tshuab txais kev sib xyaw ua ke ntawm sab sauv - sab thiab qis - sab ntawm lub rooj.Cov pwm tsim cov txheej txheem yog muab faib ua peb ntu thaum lub rooj sib sau. nws tus kheej tsav turrets uas tau teem rau hauv txoj kev ntawm 4-7-7 configuration. Lub ntsiab tsav nyob rau hauv lub rooj yog txuas nrog globoidal indexing cams thiab iav. Cov khoom kis tau tus mob yog nyob rau hauv cov ntaub ntawv kaw thiab lubricated los ntawm txau.Qhov kev kub ceev ntawv khob ua tshuab yog tswj los ntawm PLC, tag nrho cov txheej txheem yog saib xyuas los ntawm photoelectric sensors, pub mis los ntawm sevro.The NEWTOP-258S siab ceev ntawv khob ua tshuab ua tiav qhov siab tshaj plaws ntawm 260 pcs / min, tsim rau tsim 8-22oz cov ntawv khob kub thiab txias.
Lus Cim: Lub peev xwm tsim tau tiag tiag cuam tshuam los ntawm ntau yam thiab cov ntaub ntawv saum toj no tsuas yog siv rau kev siv.
|
NEWTOP-258S |
|
|
Qhov hnyav: |
7500kg ib |
|
Tshuab encasement dimension: |
3300 x 2140 x 2250 mm |
|
Txuas lub zog: |
Peb -theem, 380V, 55KW |
|
Compressed cua: |
0.5-0.7MPa, 0.5m³ / min |
|
Muaj peev xwm ntau lawm: |
220pcs / min |
|
Hom ntawv: |
Ib leeg PE / ob chav PE / PLA |
|
Ntawv thickness: |
0.295-0.47 hli |
|
Cov khoom lag luam: |
(D1) φ60-100mm (H) 70-180mm (D2) φ50-80mm (h) 5-12mm |
|
Long-term magazine: |
○ |
|
Tswj vaj huam sib luag: |
10.2 hli |
| Nco tseg: xaiv tau○ tus qauv● | |
 |
 |
 |
 |
